PBL系列
密闭上卸料直联离心机



PBL series
direct-connected driving upper discharge centrifuge

        PBL系列离心机是一种适用于高洁净生产、卫生级过滤离心机,广泛用于制药、食品、精细化工等行业的多种固液混合物分离。它具有制造工艺高,耐腐蚀性强,工作稳定、完全符合高卫生要求等显著特点。

PBL series centrifuge meet the requirement of high cleanliness and sanitary filtering,also performs well in corrosion resistance.Application field;chemical industry,food industry,pharmaceutical industry,etc.

◎工作原理



Working principle

        待分离物料由进料管进入高速旋转的离心机转鼓,在离心力场的作用下,均布在转鼓内壁的滤布上,进行过滤分离。分离过程中液相透过固相物料、滤布的缝隙和转鼓壁上的小孔,从底盘的出液管流出;而固相物料则被截留在转鼓壁内。达到分离要求后停机,开启机盖,人工用卸料,完成一个工作循环。

Floating liquid come into drum trough feed tube,centrifugal force field makes solid phase spread evenly on filter cloth forms a cake.While liquid phase through gap between solid phase and filter cloth also holes of drum,discharge from liquid outlet of base.When it reaches expected effect,turns down the machine,opens lid,discharge material by human,then a whole working cycle has been finished.

◎主要特点



◎Main features

1、全密闭结构避免分离物料的交叉感染,内腔氮气保护,满足密闭防爆要求。
2、电机直接传动,无皮带摩擦带来的粉尘污染。
3、大翻盖,快开结构。
4、与物料接触部分为不锈钢,耐腐蚀性好。
5、设备主要零部件表面均采用精密抛光处理,内部结构无死角,易清洗。
6、维护方便快捷,无易损件。



1)Fully sealed structure prevent material from cross infection,interior cavity nitrogen overload protection,meet the requirements of explosion proof.

2)Unique motor shaft direct-connected driving with drum,free from dust pollution caused by belt friction.
3)Available reversible big lid and fast opening structure.
4)Parts contact material is made of stainless steel,has a property of corrosion proof.
5)Critical parts surface is polished,interior structure without dead corner,easy to cleaning.
6)Facilitate repair and maintenance,without vulnerable part.

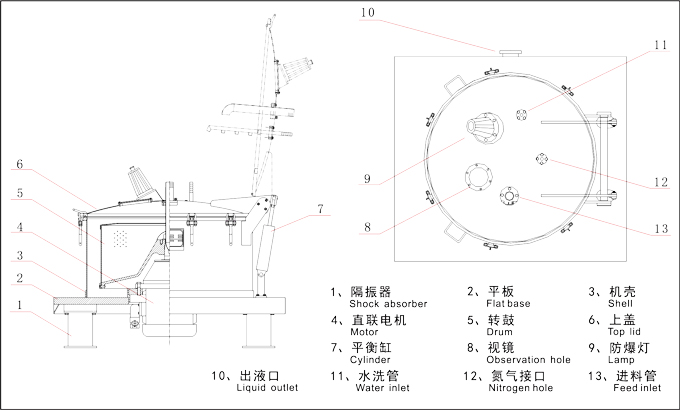

 ◎结构示意图(Structure schematic diagram)

◎主要材料



◎Composition of critical parts

1、平板为Q235A包衬不锈钢。
2、转鼓部件除转鼓底为铸铁包衬不锈钢外其余全部采用不锈钢。
3、轴承座采用铸钢件包衬不锈钢。
4、机壳、机盖包括附属品全部采用不锈钢。
5、直联电机外部与物料接触部分包衬不锈钢。
6、平衡缸采用不锈钢制作。



1Flat plate is made of Q235A carbon steel coated by stainless steel.

2Drum base is made of cast iron coated stainless steel,other parts of drum is fully stainless steel.

3Bearing pedestal is made of cast iron coated stainless steel.

4Shell,top lid and belongings are made of stainless steel.

5Direct-connected motor parts contact material are coated stainless steel.

6Balance cylinder is made of stainless steel.

◎结构与配置(Structure and configuration)

项目(Item)
标准(Ordinary )
可选(Alternatives)
整机结构
(Whole machine set)
平板式结构
Flat plate

转鼓与物料接触部分的材质
(Drum contact with material part’s composition)
SUS304不锈钢
SUS304 stainless steel
SUS316、316L、321不锈钢、钛材、衬塑、衬HALAR、衬胶等
Stainless steel:SUS316,SUS316L,SUS321;titanium;lining plastic;lining HALAR;lining rubber;etc.
机盖结构
(Cover structure)
翻盖
Reversible

机盖附件
(Cover articles)
进料管、水洗管、视镜、防爆灯
Feed tube,washing tube,observation hole,explosion-proof lamp
排气孔、充氮口及其他结构要求
Air outlet,nitrogen discharge hole unit or others
开盖方式
(Lid opening)
快开结构,平衡缸助力开盖
Fast opening structure,Balance cylinder facilitate opening
气动开盖
Pneumatic turning shell
布料方式
(Distribution method)
侧向布料
Side distribution

电机种类
(Motor type)
普通电机
Ordinary
变频电机、防爆电机、节能电机
frequency-alterable,explosion-proof or energy saving
制动方式
(Braking method)
能耗制动
Dynamic braking
回馈制动
Feedback braking
操控系统
(Controlling system)
变频、手动
frequency-alterable,manual
PLC+HMI人机界面
PLC+HMI
安全防护(Safety technologies)
振动保护、开盖联锁保护、电机防护罩、过载过热保护
Over vibration,opening interlock,motor shield,overload,overheat
转速显示、在线含氧检测充氮保护系统
Speed display,oxygen detection and nitrogen protection online system
卸料方式
(Discharge method)
人工
manual

清洁处理
(Cleaning)
水洗清洁
Washing
在线清洗结构
Online washing
其他
(Others)

其他配置要求

◎技术参数(Technical parameters)

机型
Model
转鼓直径
Drum D
转鼓高度
Drum H
转鼓转速
Drum speed
分离因数
Separation factor
最大容积
MaximumVolumn
最大装料量
Maxiumum load
电机功率
Motor power
重量
weight
外形尺寸
dimensions
mm
mm
r/min

L
Kg
KW
Kg
mm
PBL600
600
320
0-1500
0-756
45
70
4
800
1200×1000×1350
PBL800
800
400
0-1500
0-1000
100
135
7.5
1100
1400×1200×1350
PBL1000
1000
420
0-970
0-526
140
200
11
1900
1700×1500×1400
PBL1200
1200
500
0-900
0-545
250
350
15
2900
2000×1800×1500
PBL1250
1250
500
0-900
0-567
300
420
15
3000
2000×1800×1700

此为常用参数,具体产品所用参数根据用户需要定制。
Above are ordinary parameters,could tailored according to customer’s requirements.
