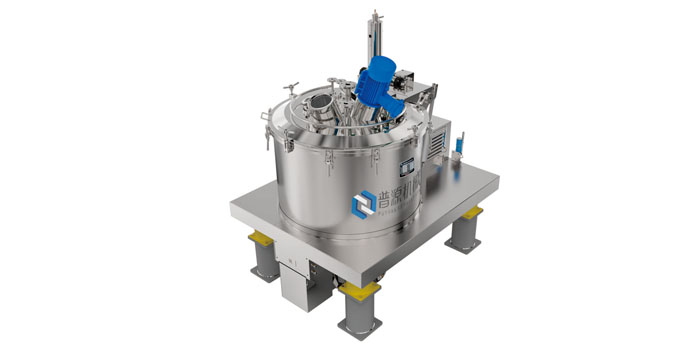

PGZQ系列
全自动下卸料自清洁型离心机



PGZQ series
Automatic self-cleaning bottom discharge centrifuge

        PGZQ全自动下卸料自清洁型离心机是一种立式、小刮刀卸料、自动间歇操作过滤式离心机。它在一个工作周期内可按照不同要求,依次自动完成进料、分离、卸料、清洁滤袋等工序。该机采用HMI人机界面触摸操作系统和PLC可编程控制器,配合变频器控制转速系统、机械式自动卸料装置、料满自动检测装置及各类阀门联合动作,实现整机的自动化操作。适用于细颗粒和中等颗粒度固相悬浮液的固液分离,也可用于纤维状物料的固液分离,主要服务于化工、食品、制药、矿物、环保等行业。


PGZQ Automatic self-cleaning bottom discharge centrifuge,discharges by small scraper,operates intermittently.It automatically completes feeding,separating,discharging and cleaning with in work cycle according to different requirements.PGZQ series centrifuge adopts HMI and PLC,working accompanies with converter,machinery automatic discharging unit,overload automatic detection unit and valves,to realizes automatic operation of whole machine set.It is suit for separation of solid suspension includes tiny and medium particles,also suit for separation of fibrous material.Application field:chemical industry,food industry,pharmaceutical industry,mining industry and environmental protection industry,etc.

◎工作原理



Working principle

        待分离物料由进料管进入高速旋转的离心机转鼓,在离心力场的作用下,均布在转鼓内壁的滤布上,进行过滤分离。分离过程中液相透过固相物料、滤布的缝隙和转鼓壁上的小孔,从底盘的出液管流出;而固相物料则被截留在转鼓壁内。达到分离要求后,通过刮刀卸料,出渣口排出。最后,滤袋清洁机构动作,清除残余的固相物料   Material comes into rotating drum trough feed tube,centrifugal force field makes it spread evenly on filter cloth of interior wall.During separation process,liquid trough gap within solid phase and filter cloth also holes of drum interior wall,discharges by outlet.While solid material retained within drum wall.After separation,scraper cuts filter cake into pieces,then discharges by outlet.The last step is self-cleaning,remove solid residues.

◎主要特点



◎Main features

        整机遵循工业设计“系统集成,跨界融合”的理念,综合功能性、实用性、安全性进行系统设计,在满足设备性能的同时,强化设备易操作性和易维护性,确保设备高效、稳定、安全运行,真正为用户提升价值。



  Machine to follow the industrial design the concept of "system integration, cross-border integration", comprehensive functional, practical, security system design, while meet the equipment performance, strengthen equipment operability and maintainability, to ensure the efficient and stable, safe, truly add value for the user.

使用安全



Safe in use

一、主轴轴承运行安全
1)优化主轴承结构布局,装配与拆卸简单可靠,保证轴承正常使用。
2)集中式油脂润滑。主轴承上下组单独高压供油,降低现场维护保养的难度,为设备安全运行提供保障条件。
二、料液在转鼓内均布安全
布料方式:叶片风轮式旋转斜盘布料。
1) 改善因料液进入布料器内形成的流体紊乱而造成布料器抛料现象。
2) 消除因布料器工作时,在出料口形成流体压力墙造成的布料受阻及分布不均现象。
3)减少料液在布料器内停留时间,快速通过,均匀布料。
4)改善因布料不均而造成的设备异常震动现象,降低对设备零部件的损害。
三、物料安全
物料清除方式:杠杆式自动清除滤袋上残留物料。滤袋在工作状态时贴附于转鼓内壁,在完成料液分离、刮刀卸料之后,滤袋在连杆系统的作用下发生形变(成为上大下小与主轴同心的60度圆锥),从而将滤布壁上的残留固相物剥离,从下卸料口排出。
1)连杆结构简单,功能可靠。
2)提高分离效果。
3)有效清除残留物料,避免物料交叉污染。
四、操作安全
设计时充分考虑设备的操作安全性,保证现场操作人员及设备运行安全。
1)外置手动润滑油脂加油泵,方便现场人员操作,确保主轴轴承当班正常保养维护,有效降低设备故障率,提高生产效率。
2)设备上的高压油管路、线路设计在保护壳内,并将接口集中放置,现场整洁无外露,确保人、机安全。
3)HMI人机界面,PLC控制,整机自动化操作,无人看护,自动监测与保护。


A. Main shaft bearing safety running
1) Optimize main shaft bearing structure,assembly and dis-assembly both simply and reliable,ensure safe usage of bearing.
2) Centralized lubrication of grease. Main bearing separately supply grease to upper unit and lower unit by high pressure,downgrade of on site maintenance difficulty.
B. Liquid material safely spread within drum
Distribution method:Blade wind wheel rotative distribution
1) Relieve attrition caused by liquid disorder.
2) Remove distribution blockage and unevenly distribution made by liquid pressure wall nearby outlet.
3) Reduce the time of material stays within distributor,evenly distribution.
4) Relieve unusual vibration of equipment,protect accessories and components.
C. Residues safety
Residues removal:lever type automatically remove residues on filter bag.
In operate state,filter bag adhesive to drum interior wall;in non-operate state,filter bag deforms under the effect of connecting rod(become a 60 degree circular cone concentric with main shaft),remove residues on filter cloth and discharge by outlet.
1) Connecting rod has a simple structure and reliable function.
2) Improved separation effectiveness.
3) Effectively remove residues,protect material from cross infection.
D. Operation safety
Unique design ensure safety of on site personnel and equipment running.
1) External manual oil pump,facilitate on site personnel to operation,ensure on-duty maintenance for main shaft bearing ,reduce failure rate meanwhile promote production efficiency.
2) High pressure oil pipeline and circuit designed within shield,interfaces are laid together. Clean and tidy,ensure safety of human and equipment.
3) Adopt HMI and PLC,unattended operation,automatically monitoring and protecting.





维护安全



Safety in maintenance

一、主轴拆卸、装配安全
创新设计的上抽式主轴,配合NU系列内外圈可脱卸圆柱轴承,可方便主轴从机体分离,降低装配与拆卸难度,提高安装质量,拆装方便快捷,零件无损伤。
二、主机轴承座与轴承外圈拆卸、装配安全
创新设计的分离式轴承座套结构,改变传统的轴承外圈直接与轴承座主体安装的方式,现场拆卸方便简易,零件无损伤。
三、主轴轴承内圈拆卸、装配安全
主轴在设计时参考高压油拆卸轴承的原理,降低维护难度,实现拆装无损伤,同时延长设备使用寿命。
四、设备防护安全
设备各功能结构模块化设计并内置于对应的外防护罩壳中,既保证了维修拆卸方便,又有效地保护人机安全。







A. Safety assembly and dis-assembly for main shaft
Innovative upper removal main shaft,equipped with NU series cylinder bearing adopts detachable interior and exterior rings,facilitate shaft depart from centrifuge,easy handle and do no harm to accessories.

B. Safety assembly and dis-assembly for main machine bearing exterior ring
Unique separating bearing sleeve structure,facilitate exterior ring depart from bearing pedestal,do no harm to accessories.

C. Safety assembly and dis-assembly for main machine bearing interior ring
Design of main shaft refers to principle of high pressure oil detaches bearing,easy to maintenance,realize dis-assembly free of harm,meanwhile prolong service life.

D. Protection of equipment
Functional structure designed modularly,build in relative shields,facilitate dis-assembly,keep human and machine from danger.

      ◎结构示意图(Structure schematic diagram)

◎主要材料



◎Composition of critical parts

1、平板为Q235A包衬不锈钢。
2、转鼓部件除转鼓底为铸铁包衬不锈钢外其余全部采用不锈钢。
3、机壳、机盖包括附属品全部采用不锈钢。
4、平衡缸采用全不锈钢。
5、轴承座采用铸钢件(ZG230-450)。

  1) Flat plate is made of Q235A carbon steel coated by stainless steel.
2) Drum base is made of cast iron coated by stainless steel,other parts of drum are stainless steel.
3) Shell,top lid and belongings are made of stainless steel.
4) Balance cylinder is made of stainless steel.
5) Bearing pedestal are made of cast iron parts(ZG230-450).

◎结构与配置(Structure and configuration)

项目(Item)
标准(Ordinary )
可选(Alternatives)
整机结构
(Whole machine set)
平板式结构
Flat plate

转鼓与物料接触部分的材质
(Drum contact with material part’s composition)
SUS304不锈钢
SUS304 stainless steel
SUS316、316L、321不锈钢、钛材、衬塑、衬HALAR、衬胶等
Stainless steel:SUS316,SUS316L,SUS321;titanium;lining plastic;lining HALAR;lining rubber;etc.
上盖结构
(Top lid)
大翻盖
Entire reversible

上盖附件
(Top lid belongings)
进料管、水洗管、视镜、防爆灯、刮刀装置、料位探测器
Feed tube,washing tube,observation hole,explosion-proof lamp,scraper unit,material position detecto
排气孔、充氮口、撇液装置及其他结构要求
Air outlet,nitrogen discharge hole,liquid skimming unit or others
开盖方式
(Lid opening)
快开结构,平衡缸助力开盖
Fast opening structure,Balance cylinder facilitate opening

布料方式
(Distribution method)
斜盘布料
Slope dish
侧向布料
Side distribution
电机种类
(Motor type)
变频电机
frequency-alterable
普通电机、防爆电机、节能电机
Without frequency adjusting,explosion-proof or energy saving
制动方式
(Braking method)
能耗制动
Dynamic braking
回馈制动
Feedback braking
操控系统
(Controlling system)
变频+PLC+HMI人机界面
frequency-alterable+PLC+HMI

安全防护(Safety technologies)
振动保护、开盖联锁保护、转速检测、过载过热保护、刮刀原位保护、刮刀旋转与升降机械电气双重联锁保护
Over vibration,lid opening interlock,speed detection,overload,overheat,scraper in situ,scraper turning and lifting machinery electric dual control
转速显示、防爆装置、在线含氧检测充氮保护系统
Speed display,explosion-proof unit,oxygen detection and nitrogen protection online system
卸料方式
(Discharge method)
液压刮刀
Hydraulic scraper

清洁处理
(Cleaning)
水洗清洁、滤袋自动清除装置
Washing,filter bag automatic remove unit
在线清洗结构、高压气体反吹系统
Online washing structure,high pressure air back flushing system
三角皮带
(Triangular belt)
普通三角皮带
Ordinary
防静电三角皮带
Static proof
其他
(Others)

其他配置要求

◎技术参数(Technical parameters)

机型
Model
转鼓直径
Drum D
转鼓高度
Drum H
转鼓转速
Drum speed
分离因数
Separation factor
最大容积
MaximumVolumn
最大装料量
Maxiumum load
电机功率
Motor power
重量
weight
外形尺寸
dimensions
mm
mm
r/min

L
Kg
KW
Kg
mm
PGZQ1000
1000
500
0-1000
0-559
170
230
15
4000
2100×1600×2300
PGZQ1250
1250
630
0-1000
0-698
400
520
22
7000
2410×1820×3370
PGZQ1600
1600
720
0-850
0-646
720
900
37
13000
3000×2400×3500
PGZQ1800
1800
800
0-800
0-645
900
1250
55
15000
3230×2600×3800

此为常用参数,具体产品所用参数根据用户需要定制。
Above are ordinary parameters,could tailored according to customer’s requirements.
